Basic Info

Model No.: 40152S-15Ah

Additional Info

Packaging: 8pcs/carton, 24pcs/carton, 32pcs/carton

Productivity: 150000pcs/month

Brand: Headway

Transportation: Ocean,Land,Air

Place of Origin: China

Supply Ability: 150000pcs/month

Certificate: ISO14001, ISO18001,UL1642

HS Code: 8507600090

Port: Shenzhen,Shanghai

Product Description

Product Description

Headway lithium li-ion battery 40152S 3.2V 15AH cell for marine system SPECS

Item	Specification
Nominal capacity	15Ah @ 0.5C
Minimum capacity	14.5Ah @ 0.5C
Nominal voltage	3.2V
Max Charging voltage	3.65 ±0.05 V
Discharge ending voltage	2.5 ±0.05 V
Charge current	Standard charge: 1C   Max charge: 2C when T≥10 ℃  Max charge: 1C when 10 OC≥T≥0 ℃  Max charge: 0.1C when 0 OC≥T≥-10 ℃
Discharge current	Standard discharge: 1C   Max continuous discharge: 3C   Max instant (30s) discharge: 10C
Recommended charge and discharge cell surface temperature	Charge: 0～45 ℃   Discharge: -20～60 ℃
Maximum allowable charge and discharge cell surface temperature. Charging and discharging at these conditions will shorten cell cycle life.	Charge: 60 ℃ Discharge: 75 ℃
Humidity range	0～90%RH (noncondensing)
Internal resistance	≤4mOhm (AC Impedance, 1000HZ)
Cell dimension	Height: 168 mm Max   Diameter: 41.0mm Max
Weight	≤490g

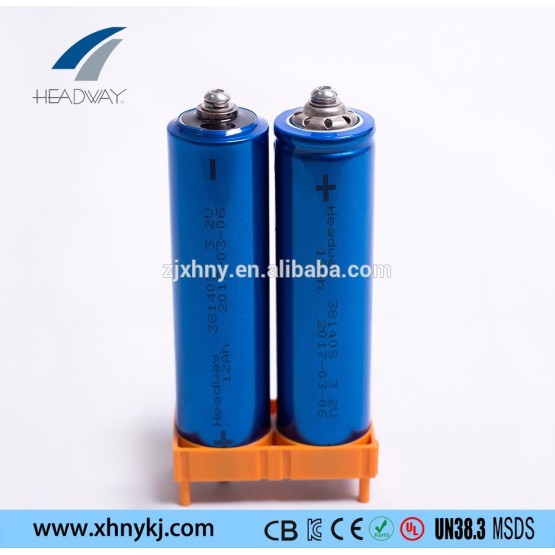

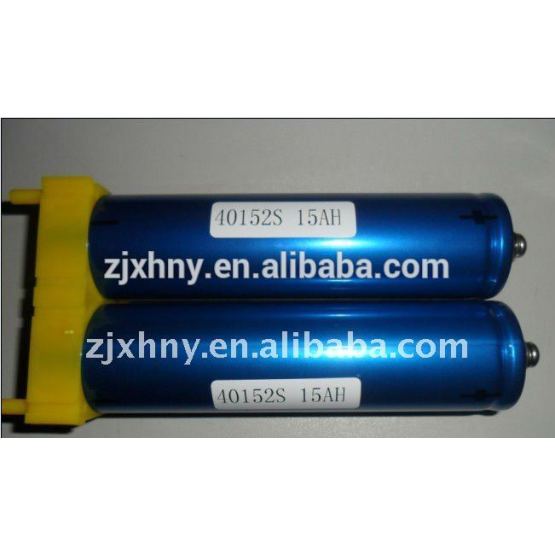

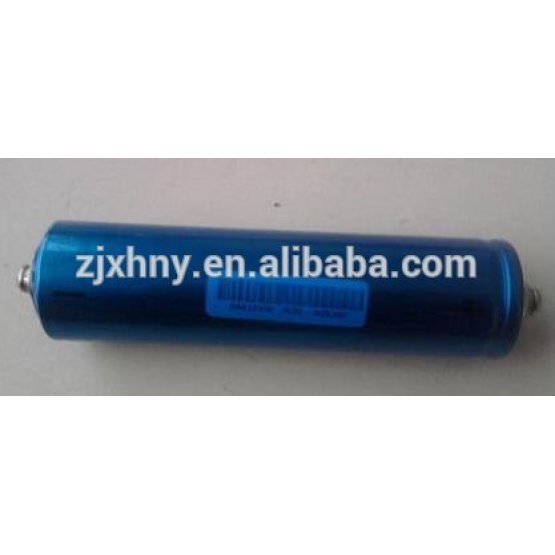

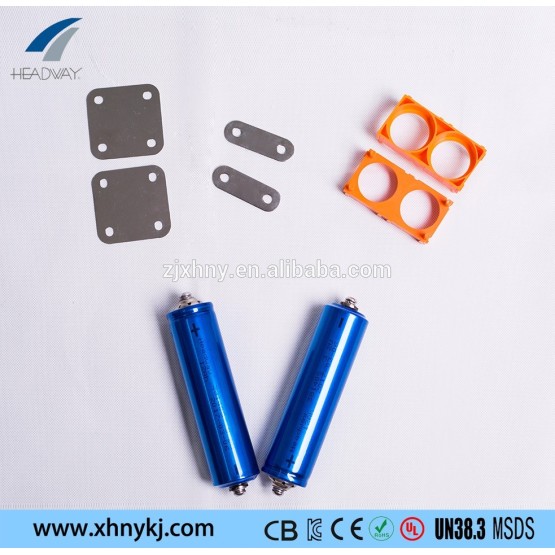

Detailed Images

Related Products

Model	38120S	38120L	38140S	40152S	38120HP
Nominal capacity	10Ah	10Ah	12Ah	15Ah/17Ah	8Ah
Operating voltage range	2.0-3.65V	2.0-3.65V	2.0-3.65V	2.0-3.65V	2.0-3.65V
Nominal voltage	3.2V	3.2V	3.2V	3.2V	3.2V
Internal resistance	≤4mΩ	≤4mΩ	≤4mΩ	≤4mΩ	≤2.5mΩ
Battery size	D38*H135mm	D38*H120mm	D38*H155mm	D40*H165mm	D38*H135mm
Standard charge current	1C	1C	1C	1C	3C
Max. continuous charge current	2C	2C	2C	2C	10C
Standard discharge current	1C	1C	1C	1C	5C
Max. continuous discharge current	3C	3C	3C	3C	15C
Max. pulse discharge current	10C	10C	10C	10C	30C
Cycle life(With standard charge and discharge)	2000	2000	2000	2000	2000
-10 degrees discharge(VS. normal temperature)	0.6	0.6	0.6	0.6	0.6
Allowable operating temperature range	-10-45℃	-10-45℃	-10-45℃	-10-45℃	-10-45℃
Capacity retention at room temperature with 28 days	≥97%	≥97%	≥97%	≥97%	≥97%
Capacity recovery rate at room temperature with 28 days	0.99	0.99	0.99	0.99	0.99
