deep cycle lithium ion battery12v 100ah for e-vehicles
Payment Type: | L/C,T/T,D/P,Paypal,Money Gram,Western Union |
---|---|
Incoterm: | FOB,CFR,CIF,EXW,FCA |
Min. Order: | 24 Piece/Pieces |
Delivery Time: | 15-25 Days |
Basic Info
Model No.: 12100
Additional Info
Packaging: 8pcs/carton, 24pcs/carton, 32pcs/carton
Productivity: 150000pcs/month
Brand: Headway
Transportation: Ocean,Land,Air
Place of Origin: China
Supply Ability: 150000pcs/month
Certificate: ISO14001,ISO18001,UL1642,RoHS,TS16949,CB
HS Code: 8507600090
Port: Shenzhen,Shanghai
Product Description
Item
|
Specifications
|
Nominal Voltage
|
12V
|
Nominal Capacity(0.5C,25℃)
|
100Ah
|
Weight(Approximate)
|
18.5kg
|
Dimension(Length*Width*Height)
|
305mm*290mm*170mm
|
Standard Discharge@25℃
|
|
Max. Continuous Current
|
150A
|
Max. 20 sec. Pulse
|
200A
|
Cut-off Voltage
|
10V±0.2V
|
Standard Charge
|
|
Charge Voltage
|
14.6V±0.2V
|
Recommended Charge Current
|
100A
|
Max. Charge current
|
150A
|
Charge Time
|
1.5hours
|
Resistance and rates
|
|
Internal Resistance
|
≤10mΩ
|
Self-discharge rate
|
≤3% per month
|
General Features
|
|

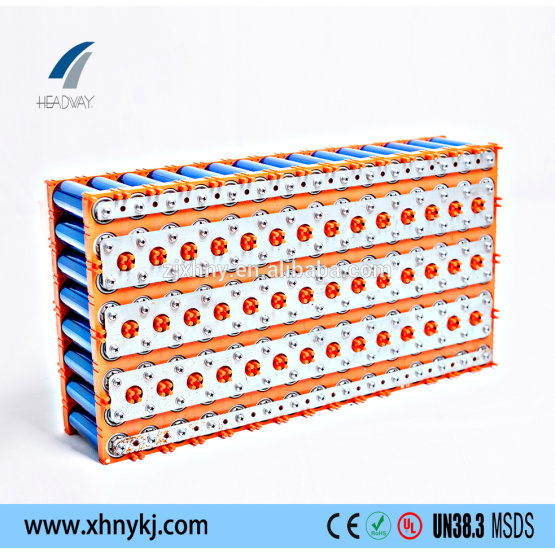

Assembly cell
|
38120S 10Ah
|
BMS specs
|
150A-300A
|
1. We can supply the whole battery pack or the single cells with accessories to you if you need.
2. We also can design other kinds of battery pack according to your requirements.
Don’t immerse the battery in water;
Don’t use and leave the battery near a heat source such as fire or heater;
When charging, use a battery charger specifically for that purpose;
Don’t reverse the positive and negative terminals;
Don’t connect the battery to an electrical outlet directly;
Don’t discard the battery in fire or heater;
Don’t connect the positive and negative terminal directly with metal objects;
Don’t transport and store the battery together with metal objects such as necklaces, hairpins;
Don’t directly solder the battery;
Don’t pierce the battery with a nail or other sharp object.
