Basic Info

Model No.: 80400

Additional Info

Packaging: 1pc/carton

Productivity: 3000pack/month

Brand: Headway

Transportation: Ocean,Land,Air

Place of Origin: China

Supply Ability: 3000packs/month

Certificate: ISO14001, ISO18001,UL1642

HS Code: 8507600090

Port: Shenzhen,Shanghai

Product Description

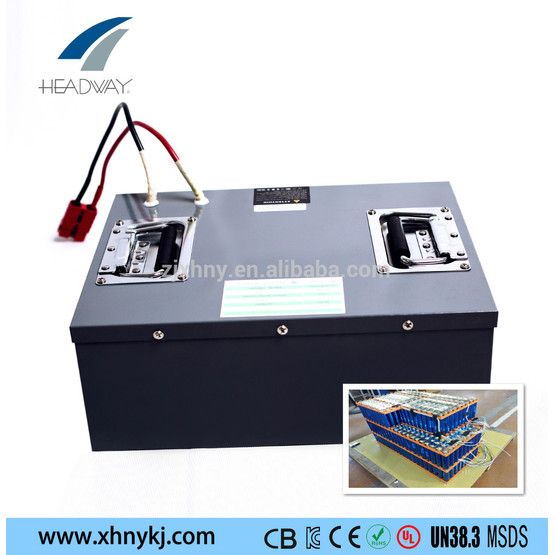

Forklift Battery

Item	Specification
Model	LiFePO4 80V400Ah Electric Forklift Battery
Nominal Voltage	80V
Nominal Capacity(0.5C,25℃)	400Ah
Weight(Approximate)	332kg
Dimension(Length*Width*Height)	1030*600*625mm
Max.Charge Current Rate	200A (Current can be customized)
Max.Discharge Current Rate	400A (Current can be customized)
Working voltage range	62.5 ~91.3V
Rated Power	32KWH
Connection	25S27P

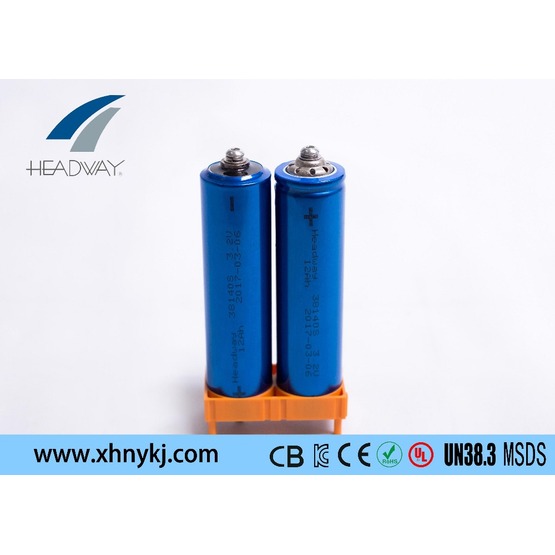

Assembly cell	40152S 15Ah
Total quantity of cells	675pcs
BMS Main Function	1.BMS system self-checking/standby condition 2.Balance function 3.Insulation Resistance Measure 4.CAN bus communication 5.SOC（state of charge）estimation 6.Single cell voltage measure 7.Temperature measure in the battery pack

Detailed Images

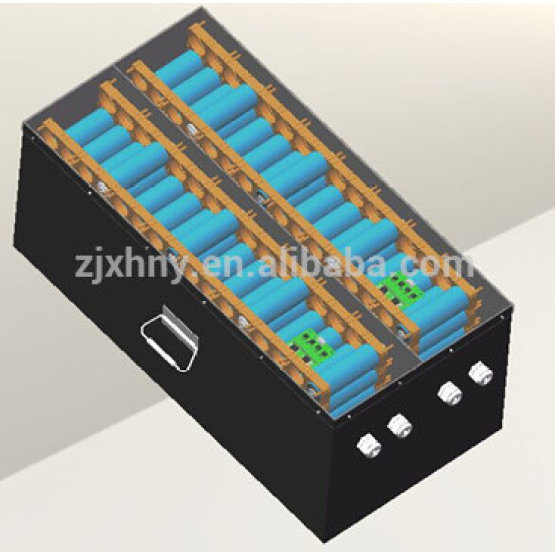

One module of 80V400Ah electric forklift battery pack, several module with series connection to complete a whole 80V400Ah
