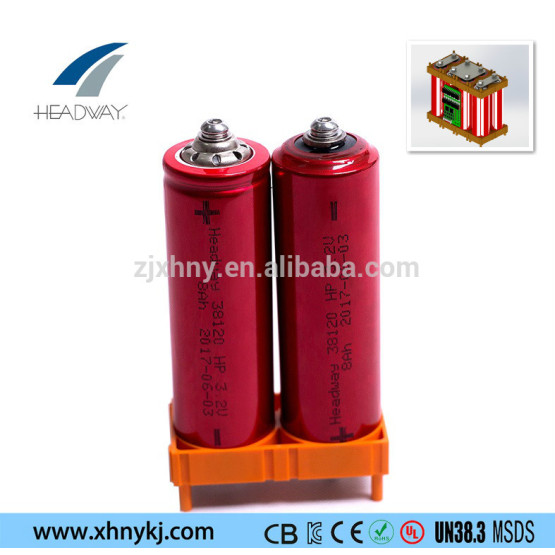

Headway 38120hp 8Ah 3.2V high discharge liion battery
| Payment Type: | L/C,T/T,D/P,Paypal,Money Gram,Western Union |
|---|---|
| Incoterm: | FOB,CFR,CIF,EXW,FCA |
| Min. Order: | 5000 Piece/Pieces |
| Delivery Time: | 15-25 Days |
Basic Info
Model No.: 38120HP-8Ah
Additional Info
Packaging: 8pcs/carton, 24pcs/carton, 32pcs/carton
Productivity: 150000pcs/month
Brand: Headway
Transportation: Ocean,Land,Air
Place of Origin: China
Supply Ability: 150000pcs/month
Certificate: ISO14001, ISO18001,UL1642
HS Code: 8507600090
Port: Shenzhen,Shanghai
Product Description
|
Item
|
Liion Battery Specification
|
|
Nominal capacity
|
8Ah @ 1C
|
|
Minimum capacity
|
7.5Ah @ 1C
|
|
Nominal voltage
|
3.2V
|
|
Max Charging voltage
|
3.65 ±0.05 V
|
|
Discharge ending
|
2.5 ±0.05 V
|
|
Charge current
|
Standard charge: 3C
Max charge: 10C when T≥10 ℃ Max charge: 3C when 10 OC≥T≥0 ℃ Max charge: 0.1C when 0 OC≥T≥-10 ℃ |
|
Discharge current
|
Standard discharge: 5C
Max continuous discharge: 15C Max instant (30s) discharge: 30C |
|
Charge and discharge
cell surface temperature rise |
5C continuous discharge:≤15 ℃
10C continuous discharge:≤25 ℃ |
|
Recommended charge and discharge cell surface temperature
|
Charge: 0～45 ℃
Discharge: -20～60 ℃ |
|
Maximum allowable charge and discharge cell surface temperature. Charging and discharging at these conditions will shorten cell cycle life.
|
Charge: 60 ℃
Discharge: 75 ℃ |
|
Humidity range
|
0～90%RH (noncondensing)
|
|
Internal resistance
|
≤2.5mOhm
|
|
Cell dimension
|
Height: 136 mm Max
Diameter: 38.5mm Max |
|
Max charge: 10C when T≥10 ℃
|
4.5 hours
|
|
liion battery 38120hp Weight
|
≤350g
|
1.Belong to Headway group.
2.Focused on liion battery manufacturing over 15 years.
3.One of the earliest professional liion battery manufacturer in China.
4.Advanced equipment for producing and testing.
5.Our unique design and technology of big lifepo4 liion battery with high capacity and high charge&discharge current rate.
Coating - Cutting - Winding - Filling - Oven
Storage - Testing - Packing - Assembly - Testing room.
As a pioneer in chinese liion battery industry, we have been exported technoloy to Iran and Germany, to cooperate with foreign company, our clients all over globe, including trade company, end user, distributor.
Liion Battery Certificate:ISO9001,ISO14001,TS16949,MSDS,UN38.3,CE,UL,TUV and ROHS etc.
40152S-15Ah lifepo4 liion battery
lifepo4 38120S-10Ah liion battery
