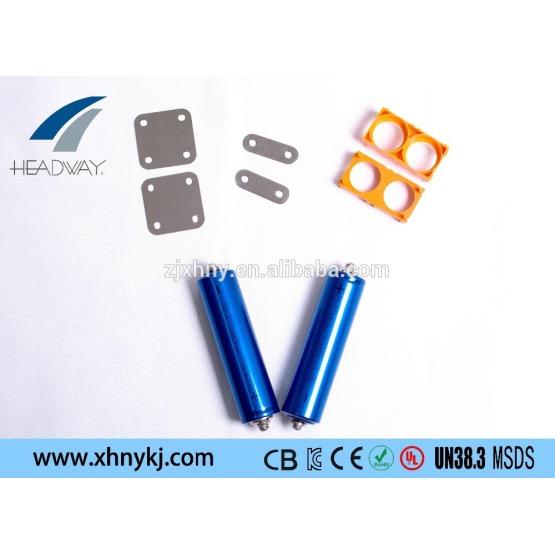

Headway lifepo4 lithium battery 40152 15ah cell for electric motor car SPECS

Nominal capacity: 15Ah @ 0.5C

Minimum capacity: 14.5Ah @ 0.5C

Nominal voltage: 3.2V

Max Charging voltage: 3.65 ±0.05 V

Discharge ending voltage: 2.5 ±0.05 V

Charge current Standard charge: 1C     Max charge: 2C when T≥10 OC     Max charge: 1C when 10 OC≥T≥0 OC     Max charge: 0.1C when 0 OC≥T≥-10 OC

Discharge current Standard discharge: 1C Max continuous discharge: 3C    Max instant (30s) discharge: 10C

Recommended charge and discharge

cell surface temperature    Charge: 0～45 OC    Discharge: -20～60 OC

Maximum allowable charge and discharge cell surface temperature. Charging and discharging at these conditions will

shorten cell cycle life.    Charge: 60 OC     Discharge: 75 OC

Humidity range: 0～90%RH (noncondensing)

Internal resistance: ≤4mOhm (AC Impedance, 1000HZ)

Cell dimension Height: 168 mm Max Diameter: 41.0mm Max

Weight: ≤490g
