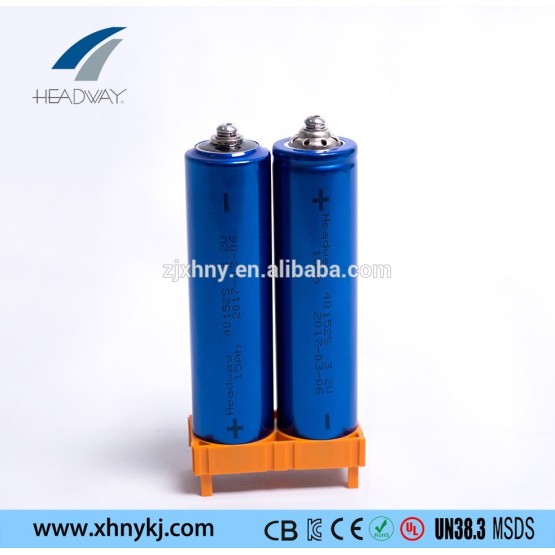

lithium ion battery 40152S-17AH for solar street lamp
| Payment Type: | L/C,T/T,D/P,Paypal,Money Gram,Western Union |
|---|---|
| Incoterm: | FOB,CFR,CIF,EXW,FCA |
| Min. Order: | 24 Piece/Pieces |
| Delivery Time: | 15-25 Days |
Basic Info
Model No.: HW40152S-17Ah
Additional Info
Packaging: 8pcs/carton, 24pcs/carton, 32pcs/carton
Productivity: 150000pcs/month
Brand: Headway
Transportation: Ocean,Land,Air
Place of Origin: China
Supply Ability: 150000pcs/month
Certificate: ISO14001,ISO18001,UL1642,RoHS,TS16949,CB
HS Code: 8507600090
Port: Shenzhen,Shanghai
Product Description
|
Item
|
Specification
|
|
Nominal capacity
|
17Ah @ 0.2C
|
|
Minimum capacity
|
16.5Ah @ 0.2C
|
|
Nominal voltage
|
3.2V
|
|
Max Charging voltage
|
3.65 ±0.05 V
|
|
Discharge ending voltage
|
2.5 ±0.05 V
|
|
Charge current
|
Standard charge: 0.5C
Max charge: 2C when T≥10 ℃ Max charge: 1C when 10 OC≥T≥0 ℃ Max charge: 0.1C when 0 OC≥T≥-10 ℃ |
|
Discharge current
|
Standard discharge: 1C
Max continuously discharge: 3C
Max instant (30s) discharge: 10C
|
|
Recommended charge and discharge cell surface temperature
|
Charge: 0～45 ℃
Discharge: -20～60 ℃
|
|
Maximum allowable charge and discharge cell surface temperature. Charging and discharging at these conditions will
shorten cell cycle life. |
Charge: 60 ℃
Discharge: 75 ℃ |
|
Humidity range
|
0～90%RH (noncondensing)
|
|
Internal resistance
|
≤4mOhm (AC Impedance, 1000HZ)
|
|
Cell dimension
|
Height: 168 mm Max
Diameter: 41.0mm Max
|
|
Weight
|
480±5 g
|
Don’t immerse the battery in water;
Don’t use and leave the battery near a heat source such as fire or heater;
When charging, use a battery charger specifically for that purpose;
Don’t reverse the positive and negative terminals;
Don’t discard the battery in fire or heater;
Don’t connect the battery to an electrical outlet directly;
Don’t discard the battery in fire or heater;
Don’t connect the positive and negative terminal directly with metal objects;
Don’t transport and store the battery together with metal objects such as necklaces, hairpins;
Don’t directly solder the battery;
Don’t pierce the battery with a nail or other sharp object.
