Basic Info

Model No.: HW38120S-10Ah

Additional Info

Packaging: 8pcs/carton, 24pcs/carton, 32pcs/carton

Productivity: 150000pcs/month

Brand: Headway

Transportation: Ocean,Land,Air

Place of Origin: China

Supply Ability: 150000pcs/month

Certificate: ISO14001, ISO18001,UL1642

HS Code: 8507600090

Port: Shenzhen,Shanghai

Product Description

Product Description

Rechargeable lithium lifepo4 storage battery 38120S 3.2v 10ah for energy storage specs

Item	Specification
Nominal Voltage	3.2V
Nominal Capacity(0.5C,25℃)	10Ah
Weight(Approximate)	330±5g
Standard Discharge@25℃
Recommended Discharge Current	10A
Max. Continuous Current	30A
Max. 30 sec. Pulse	100A
Cut-off Voltage	2.0V
Standard Charge
Charge Voltage	3.65V
Recommended Charge Current	10A
Max. Charge current	20A
Charge Time	60min ( can be customized)
Others
Internal Resistance	≤4mOhm
Self-discharge rate	≤2% per month

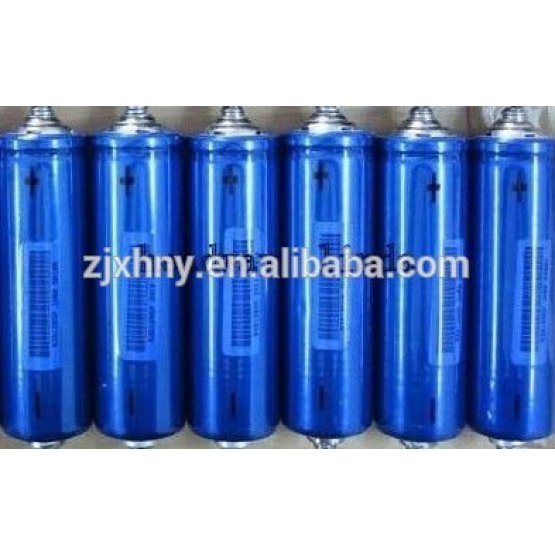

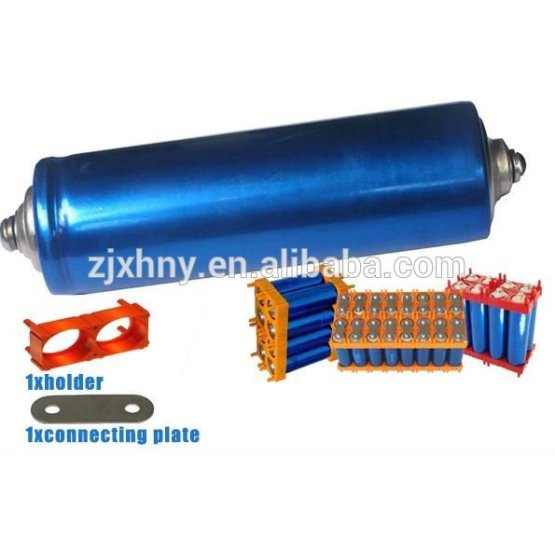

Detailed Images

Related Products

Model	38120S	38120L	38140S	40152S	38120HP
Nominal capacity	10Ah	10Ah	12Ah	15Ah/17Ah	8Ah
Operating voltage range	2.0-3.65V	2.0-3.65V	2.0-3.65V	2.0-3.65V	2.0-3.65V
Nominal voltage	3.2V	3.2V	3.2V	3.2V	3.2V
Internal resistance	≤4mΩ	≤4mΩ	≤4mΩ	≤4mΩ	≤2.5mΩ
Battery size	D38*H135mm	D38*H120mm	D38*H155mm	D40*H165mm	D38*H135mm
Standard charge current	1C	1C	1C	1C	3C
Max. continuous charge current	2C	2C	2C	2C	10C
Standard discharge current	1C	1C	1C	1C	5C
Max. continuous discharge current	3C	3C	3C	3C	15C
Max. pulse discharge current	10C	10C	10C	10C	30C
Cycle life(With standard charge and discharge)	2000	2000	2000	2000	2000
-10 degrees discharge(VS. normal temperature)	0.6	0.6	0.6	0.6	0.6
Allowable operating temperature range	-10-45℃	-10-45℃	-10-45℃	-10-45℃	-10-45℃
Capacity retention at room temperature with 28 days	≥97%	≥97%	≥97%	≥97%	≥97%
Capacity recovery rate at room temperature with 28 days	0.99	0.99	0.99	0.99	0.99

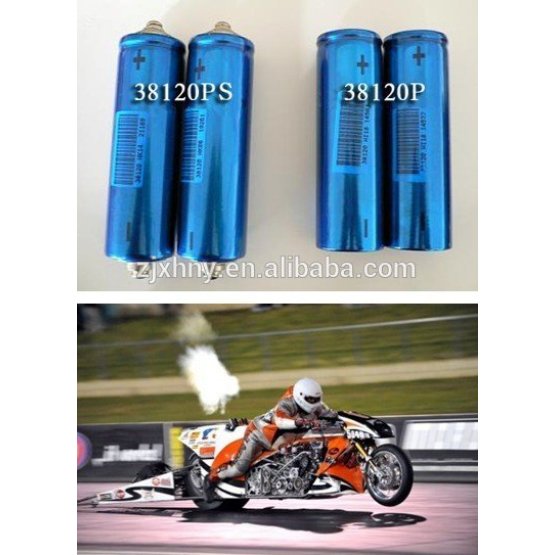

Application
