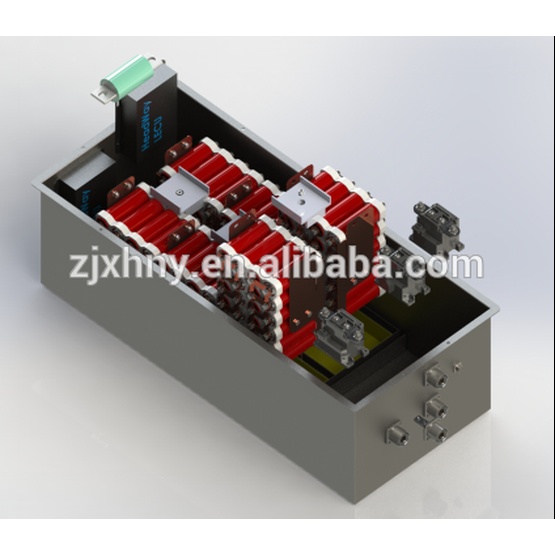

Rechargeable lifepo4 deep cycle lithium ion Battery 72V48Ah
Payment Type: | L/C,T/T,D/P,Paypal,Money Gram,Western Union |
---|---|
Incoterm: | FOB,CFR,CIF,EXW,FCA |
Min. Order: | 24 Piece/Pieces |
Delivery Time: | 15--25 Days |
Basic Info
Model No.: 7248
Additional Info
Packaging: 8pcs/carton, 24pcs/carton, 32pcs/carton
Productivity: 150000pcs/month
Brand: Headway
Transportation: Ocean,Land,Air
Place of Origin: China
Supply Ability: 150000pcs/month
Certificate: ISO14001,ISO18001,UL1642,RoHS,TS16949,CB
HS Code: 85076000
Port: Shenzhen,Shanghai
Product Description
Item
|
Specification
|
Nominal Voltage
|
72V
|
Nominal Capacity
|
48Ah(at normal temperature of 25±2℃,0.3C discharged and charged)
|
Weight(Approximate)
|
Approx.89Kg
|
Packing material
|
Cold-rolled steel
|

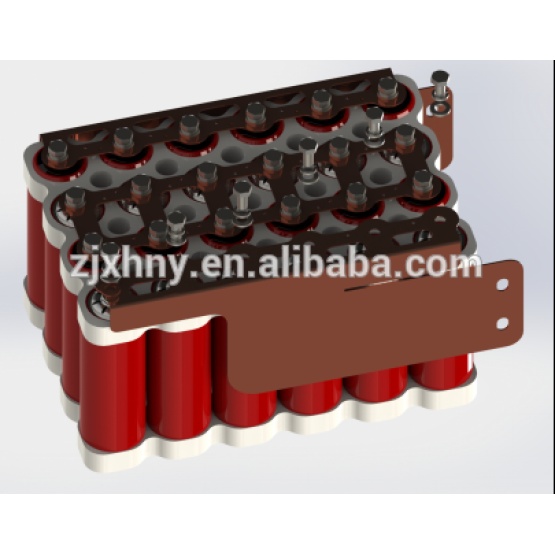

Cell model
|
HW-38120HP-8Ah
|
Assembly
|
24S6P
|
Operating temperature
|
- 20 ℃ to 60 ℃
|
Charge temperature
|
0 ℃ to 45 ℃
|
Storage temperature
|
- 10 ℃ to 45 ℃ (Keep 50% charged during storage)
|
Dimension(Length*Width*Height)
|
L 900×W400×H280(mm)
|
Operation Current
|
200A
|
Peak Current
|
450A
|
Cycle Life(Single cell 100%DOD)
|
≥2000(at normal temperature of 25±2℃,1C discharged and charged)
|
Charge Voltage
|
86.4V
|
Charge Current
|
60A
|
Peak Charge Current
|
200A
|
Insulation Resistance(Ω)
|
≥500kΩ
|
Container Water proof grade
|
IP54
|
Don’t immerse the battery in water;
Don’t use and leave the battery near a heat source such as fire or heater;
When charging, use a battery charger specifically for that purpose;
Don’t reverse the positive and negative terminals;
Don’t discard the battery in fire or heater;
Don’t connect the battery to an electrical outlet directly;
Don’t connect the positive and negative terminal directly with metal objects;
Don’t transport and store the battery together with metal objects such as necklaces, hairpins;
Don’t directly solder the battery;
Don’t pierce the battery with a nail or other sharp object.
